Standard Garage Door Sizes Explained: Find the Perfect Fit
Your garage door represents a significant investment in your home's functionality and security. The perfect fit ensures smooth operation and lasting value, while mismatched dimensions create ongoing problems that drain both time and money.
Homeowners frequently reach out to Old Town Garage expressing uncertainty about garage door dimensions. The challenge intensifies when considering various vehicle sizes, storage requirements, and the extensive range of available options. Many property owners feel overwhelmed trying to navigate these crucial decisions alone.
We deliver expert insights into garage door dimensions, drawing from our 25 years of industry experience. You'll discover typical garage door sizes, learn which measurements truly matter for your needs, and gain valuable selection criteria that ensure the perfect fit for your property.
Understanding Standard Garage Door Dimensions
Trust our expertise at Old Town Garage to guide you through the complexities of garage door dimensions. Years of experience installing thousands of residential garage doors gives us unique insight into specifications for both single and double garage doors.

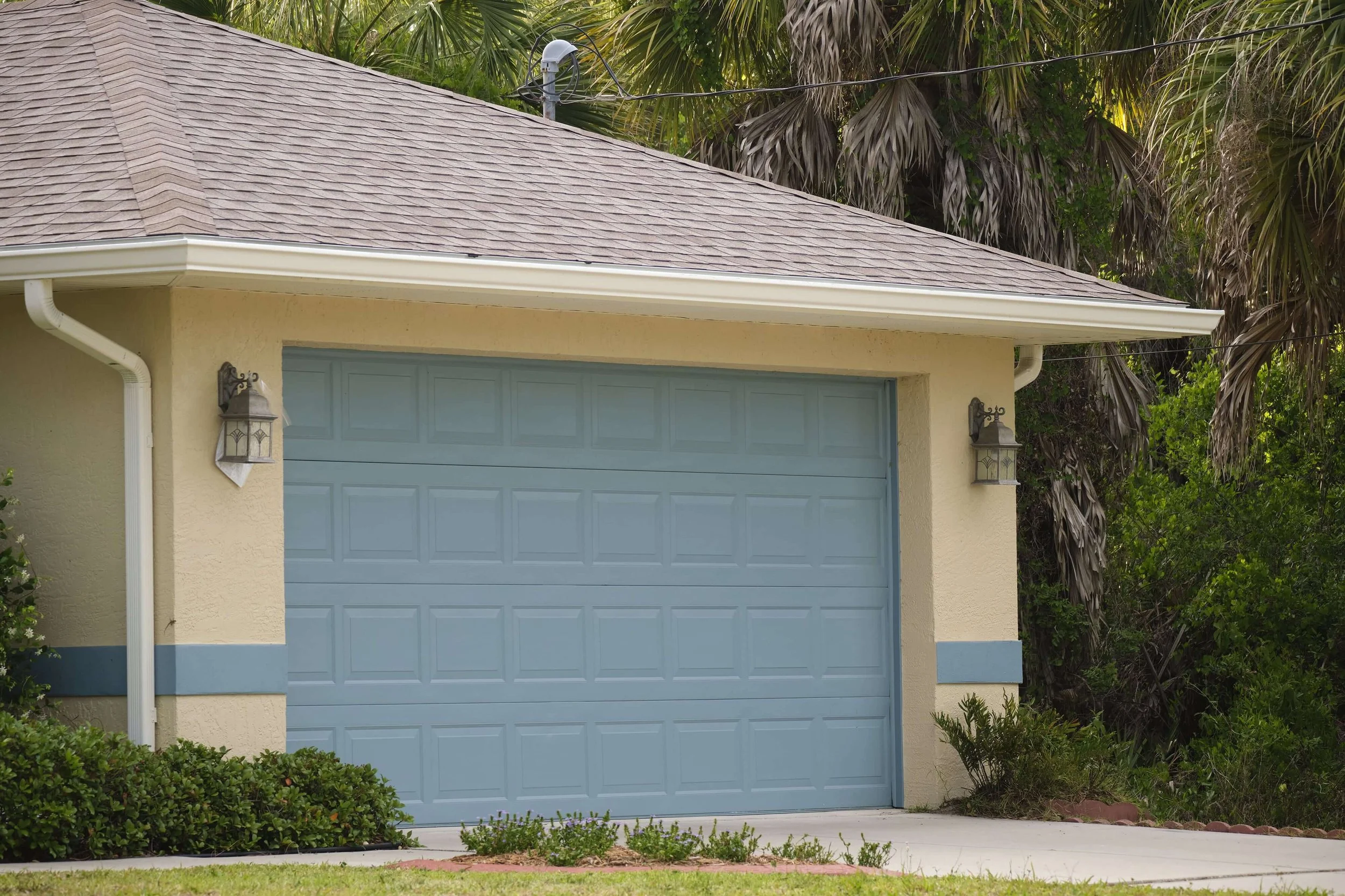

Standard single-car garages demand precision in sizing. Our professional installations typically feature doors measuring 8 to 10 feet in width and 7 to 8 feet in height. Most homeowners find optimal satisfaction with our most requested configuration: 9 feet wide by 7 feet tall, which is considered the standard single car garage door size.
When it comes to the standard height of garage doors, 7 feet is the most common, but 8-foot heights are becoming increasingly popular. The height of garage doors can vary depending on the specific needs of the homeowner and the vehicles they own.
Double garage doors present expanded possibilities. While 16 feet wide by 7 feet tall remains our classic installation choice for a standard two car garage door size, modern homebuilding trends show increasing demand for enhanced vertical clearance. Many of our recent custom projects now incorporate 16-by-8-foot dimensions to accommodate larger vehicles.
Our comprehensive garage door sizes chart includes:
Single-Car Door: 8-10 feet wide × 7-8 feet high
Double-Car Door: 16-18 feet wide × 7-8 feet high
RV Garage Door: 10-14 feet wide × 10-14 feet high
Specialized vehicles demand careful consideration. RV storage solutions require generous clearance - our expert recommendation includes adding two feet beyond your RV's height for safe operation. While RVs must legally stay under 13.5 feet in height, remember to account for additional space needed for accessories like antennas and AC units.
Regional trends shape our installation patterns. Florida's architectural preferences increasingly favor 10-foot door heights in custom builds. Space planning becomes crucial for double-door configurations - your property needs approximately 22 feet of garage width for two single doors, though a double garage door functions efficiently within 18 feet of space.
Essential Measurement Guidelines
Precise measurements stand as the cornerstone of successful garage door installations. Old Town Garage's expert team brings decades of experience to ensure your measurements deliver perfect results every time.
Your garage door's success story begins with accurate width and height measurements. Professional experience shows nearly 30% of garage openings contain subtle variations that could compromise installation. Trust our proven measurement protocol to eliminate these hidden challenges.
When considering how wide a garage door is, it's important to note that the width of a single garage door typically ranges from 8 to 10 feet, while the width of a two car garage door is usually 16 to 18 feet. The average garage door size for a single car is 9 feet wide by 7 feet high.
Critical measurements our experts verify include:
Headroom: Minimum 10 inches for extension springs and 12 inches for torsion springs
Side room: At least 3¾ inches on each side for standard installation
Backroom: Door height plus 18 inches, with an additional 4 feet 2 inches if installing an automatic garage door opener
Countless homeowners fall into the trap of incomplete measurements. Our expertise helps you avoid costly oversights by identifying potential obstacles - pipes, lighting fixtures, or ductwork that could disrupt smooth operation.
Maximize measurement accuracy with our field-tested techniques. A professional-grade 25-foot tape measure eliminates segmented measurements that introduce errors. Our three-point height verification system - left, center, and right - accounts for floor slope variations that often go unnoticed.
Smart planning extends beyond basic door dimensions. Your garage door installation requires careful consideration of supporting components. Automatic opener installations demand an extra 3 inches of headroom - a crucial detail that ensures smooth operation.
Choosing the Right Size for Your Needs
Smart garage door sizing demands more than simple vehicle measurements. Old Town Garage's quarter-century of experience guides homeowners through this crucial decision, ensuring lasting satisfaction with every installation.
Vehicle and Storage Considerations Start your garage door journey with a clear vision of both present and future needs. Single-car garages flourish with widths between 8 and 10 feet, perfectly accommodating standard vehicles. Larger vehicles demand greater consideration - SUVs and trucks require minimum 9-foot openings for stress-free daily access.
Your perfect garage door size emerges from these essential factors:
Storage Requirements: Maximize space efficiency with dedicated areas for hobby equipment alongside vehicles
Number of Vehicles: Plan for your complete vehicle family, from cars to motorcycles and bicycles
Future Needs: Anticipate tomorrow's requirements with growing families and vehicle upgrades
Additional Functionality: Transform unused space into valuable work or recreation zones
Double-car configurations showcase remarkable versatility. Our 16 to 18-foot installations create generous space for multiple vehicles while maintaining valuable storage options. Smart homeowners recognize the investment potential - market research reveals 42% of potential buyers specifically seek two-car garage properties.
Specialized storage solutions demand expert attention. RV garage doors often require custom configurations reaching 10 feet or higher. Trust our proven approach - allowing 1-2 feet of additional clearance on each side ensures comfortable daily operation.
Contact Old Town Garage Door Repair Today
Your perfect garage door solution awaits at Old Town Garage. Our comprehensive guide demonstrates how standard dimensions adapt to diverse needs, from compact single garage door installations to specialized RV configurations designed for maximum convenience.
Success hinges on precision. Expert measurements, thorough obstruction checks, and strategic planning for automated systems guarantee flawless installation results. Trust our proven process to deliver lasting value for your property.
Old Town Garage stands ready to serve your garage door needs throughout Murrieta and surrounding communities. Our family-owned, veteran-operated business brings over 25 years of dedicated service to every project. From emergency repairs to complete custom garage doors, your satisfaction drives our commitment to excellence.
Time-tested experience shows that garage door decisions impact both daily convenience and long-term property value. Smart planning today eliminates tomorrow's challenges. Ready to discover your perfect garage door solution? Our team of certified specialists stands ready to guide you through every step, ensuring your complete satisfaction with results that last.
FAQs
-
Normal garage door sizes for single doors usually measure 8 to 10 feet wide and 7 to 8 feet high. Double garage doors are typically 16 feet wide and 7 to 8 feet high. The most common single door size is 9 feet wide by 7 feet tall.
-
Yes, a 7-foot garage door is indeed 7 feet in height. However, it's important to note that garage doors are commonly available in both 7-foot and 8-foot heights to accommodate different vehicle sizes and homeowner preferences.
-
A 16-foot wide garage door is generally sufficient for two cars. This width allows for comfortable parking and maneuvering of two standard-sized vehicles. However, if you have larger vehicles or want extra space, you might consider a slightly wider option.
-
When selecting a garage door, measure the width and height of the opening, as well as the headroom, side room, and backroom. It's crucial to check for obstructions like pipes or light fixtures and consider space for an automatic garage door opener if desired. Understanding how to measure a garage door correctly is essential for a proper fit.
-
To future-proof your garage door size, consider potential vehicle upgrades, family growth, and additional storage needs. It's also wise to think about possible recreational or work area conversions within the garage. Opting for a slightly larger size can provide more flexibility for future use.
